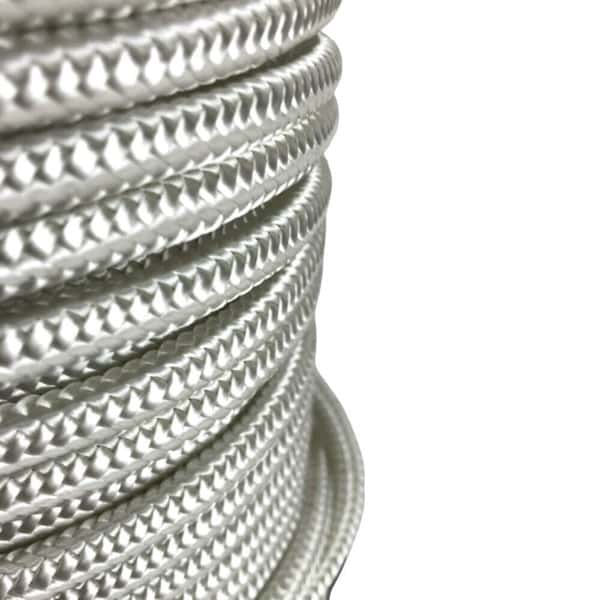

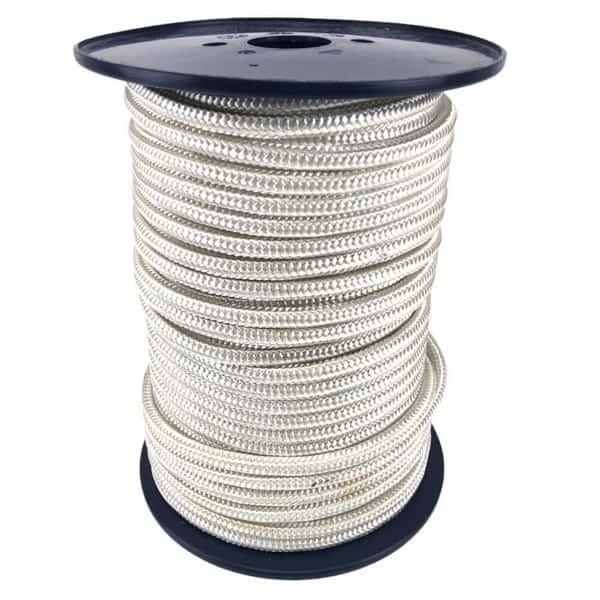

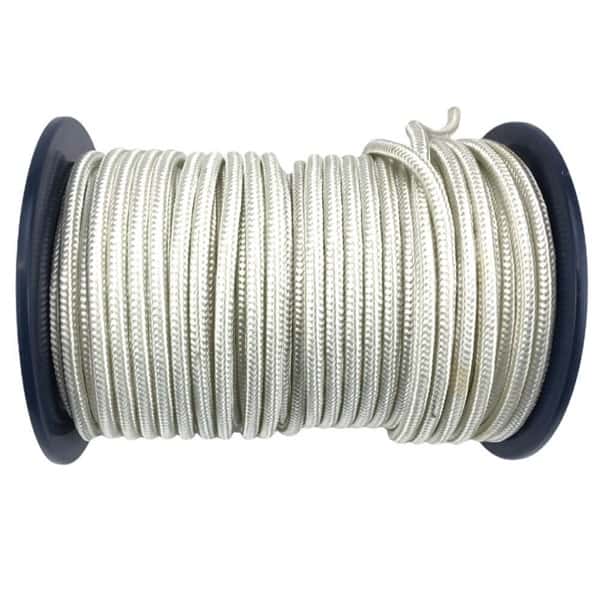

Braided Nylon Rope
Braided Nylon rope is one of the strongest of the industrial man made fibres. It was first to be introduced of the polymer based fibre ropes and the name Nylon is used in reference to all man-made fibre ropes. It has a superior strength to all the other polymer based industrial ropes and has excellent wear capabilities it is also resistant to multiple loadings. Because of this, its high stretch combined with its high strength gives it excellent resistance to shock loading.
This rope absorbs water and sinks, it is prone to attack by acids but is resistant to most alkalis and tends to shrink with age.
Nylon 3 Strand Rope
DIAMETER MAXIMUM LENGTH PER COIL APPROXIMATE WEIGHT PER COIL APPROXIMATE BREAKING LOAD
4mm 220 Metres 2.30kg 321kg
6mm 220 Metres 5.00kg 749kg
8mm 220 Metres 8.80kg 1346kg
10mm 220 Metres 13.60kg 2080kg
12mm 220 Metres 19.60kg 2997kg
14mm 220 Metres 26.80kg 4099kg
16mm 220 Metres 34.80kg 5302kg
18mm 220 Metres 44.00kg 6699kg
20mm 220 Metres 53.90kg 8300kg
24mm 220 Metres 78.10kg 12302kg
28mm 220 Metres 106.70kg 15805kg
32mm 220 Metres 138.60kg 19986kg
