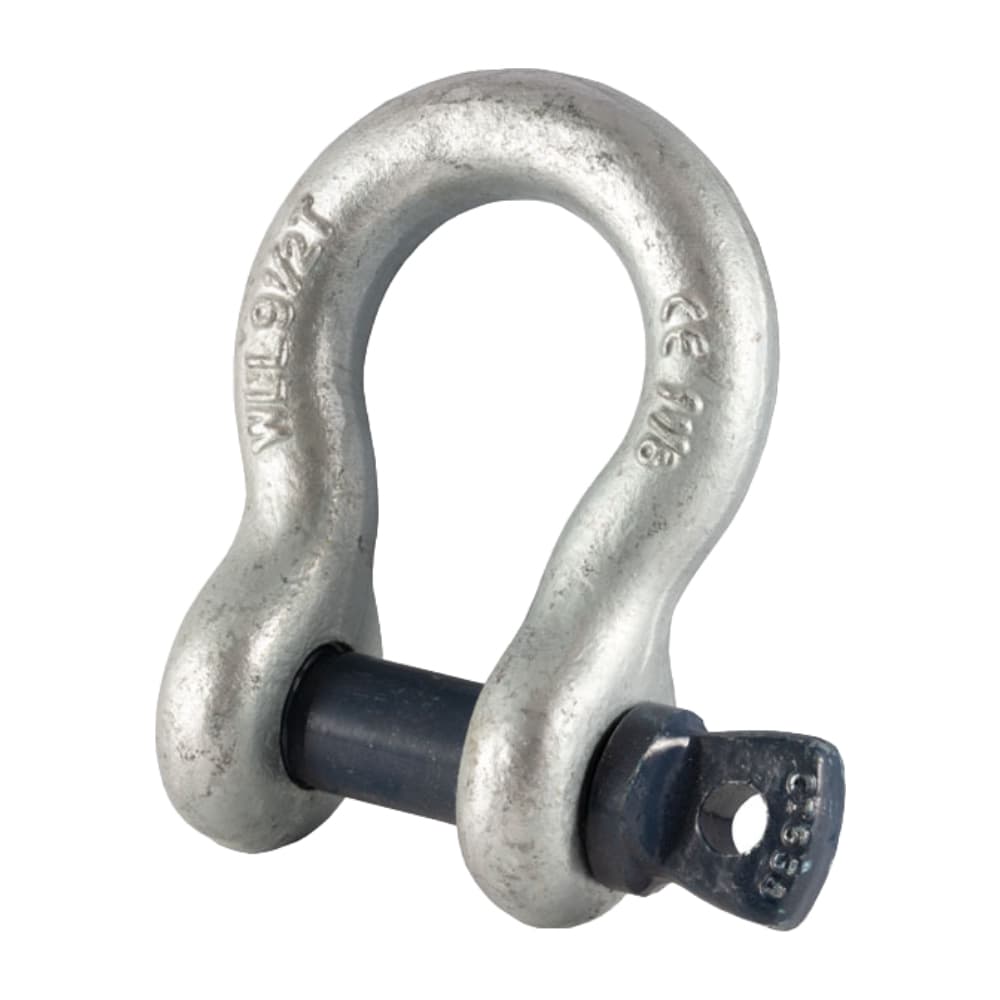

9.5 Tonne Tested Safety Bow Shackle

Looking for robust reliability in your rigging equipment? Introducing our 9.5-tonne tested bow shackle with a screw pin, tested and certified for top-notch performance. Crafted for professionals, this shackle is an indispensable asset for event rigging and various heavy-duty applications.

With a galvanised finish, this shackle not only offers superior strength but also boasts enhanced corrosion resistance, ensuring longevity even in demanding environments. Rest assured, it’s fully certified and equipped with a hot-dipped galvanized blue screw pin, adding an extra layer of durability.

Engineered from grade 6 high tensile steel, both body and pin are quenched and tempered to withstand extreme loads. Plus, with a safety factor of 6:1, you can trust in its reliability under pressure. The minimum breaking load exceeds six times the Working Load Limit (W.L.L), providing peace of mind during operations.

Each shackle is marked with essential details including CE certification, W.L.L., manufacturer’s ID, size, and a traceability code for quality assurance. Additionally, it conforms to both US FED RR-R-271 and EN13889 standards, meeting stringent industry requirements.

Invest in confidence with our 9.5-tonne tested bow shackle, engineered for performance, durability, and safety.

Approximate Dimensions:

• A: 28.6mm
• B: 31.8mm
• C: 46mm
• D: 108mm
• E: 74mm
• F: 68.5mm
